ALVANDI 6x12cm and 6x17cm back rolls

(Last update: Jun 08, 2018)

Alvandi 6x12cm roll film back

The 6x12cm back roll is standard to use in all 4x5in graflok large format cameras. It has several adapters for shooting 6x4.5, 6x6, 6x9. The 6x17 back roll is dedicated to the Panoral 617 camera. But by adding an adapter it can be used on some 13x18/5x7 cameras.

Alvandi 6x12cm back roll Technical Specification

Number of Image: 56x114: 6 , 6x9: 8 , 6x6: 12 , 6x4.5: 16 image on 120mm film

Counting the number of image: According to the recorded numbers behind 120 films.

Material: Aluminum Alloy 6061, 7075 full CNCed

Coating: Black Anodizing

Internal Paint: Anti–reflective black

External color: Semi–gloss black coating

External dimensions: W:120, H:165, D:40 mm

Weight: 600gr

ALVANDI 6x12cm back roll price

Price: Please check price list or pdf

6x12cm back roll gold version,بک رول 6*12 نسخه طلایی — **ALVANDI** 6x12cm back roll gold version

ALVANDI 6x17 Graflok Roll Film Back

This back roll is designed based on the Graflock system for the Panoral 57 camera. The back roll is designed for 6x17/6x12 shooting with a Panoral 57 and Panoral 57-III camera. You can use it exactly like a 6x12/6x9/6x7 back roll on a 4x5-inch camera.

ALVANDI 6x17/6x12 Graflok roll film back Technical Specification

Number of Image: 56x170: 4 , 56x120: 6 image on 120mm film

Counting the number of image: According to the recorded numbers behind 120 films.

Material: Aluminum Alloy 6061 full CNCed

Coating: Semi–gloss black Anodizing

External dimensions: W:218, H:150, D:40 mm

Weight: 920gr

ALVANDI 6x17/6x12 Graflok roll film back price

Price: Please check price list or pdf

ALVANDI 6x17–F roll film back

ALVANDI 6x17–F roll film back is a new back roll. This new product is very similar to the ALVANDI Panoral 617 version back roll. The only difference is the back roll front panel. In the photos below, you can see the difference between the front part of the 6x17–F back roll and the Panoral version.

ALVANDI 6x17–F roll film back Technical Specification

Number of Image: 4, 56x170mm image on 120mm film

Counting the number of image: According to the recorded numbers behind 120 films.

Material: Aluminum Alloy 6061 T6

Coating: Anodizing

External dimensions: W:220, H:118, D:38 mm

External dimensions for mounting on a 6x17 field camera: W:214, H:95 mm

Weight: 770gr

ALVANDI 6x17–F back roll price

Price: Please check price list or pdf

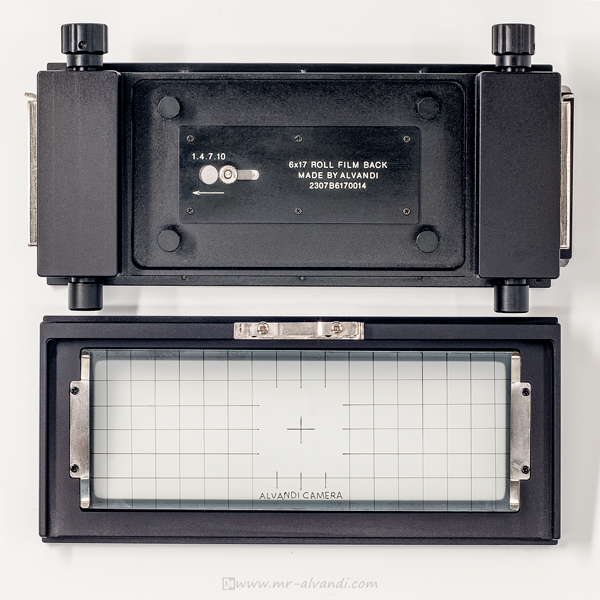

ALVANDI 6x17-F roll film back — **ALVANDI 6x17–F** roll film back and ground glass part – back view

ALVANDI Panoral 617 version roll film back

This back roll is specially designed for Panoral 617 camera. There is a special groove on the front of this back roll that matches the camera. This groove prevents light leakage.
